40′ × 60′ Party Barn
College Station, Texas. A 20′ lean-to down each side, dropped well below the main roof to put real shade on the slab.
What was built
- Metal Building
- 40′ × 60′ × 18′
- Lean-Tos
- 20′ × 60′ each side
- Lean-To Drop
- 3′-6″ below the main roofline
- Roof Pitch
- 3:13
- Overhangs
- 2′ on the main roof
- Frame Type
- SR
- Soffit
- None
About this project

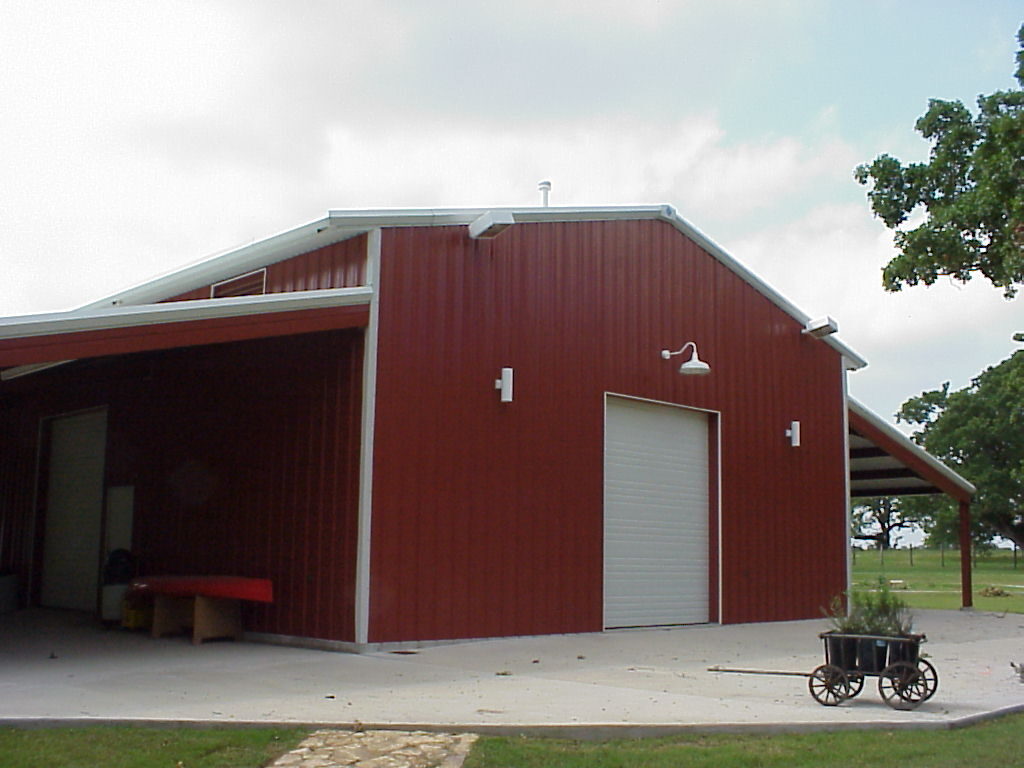

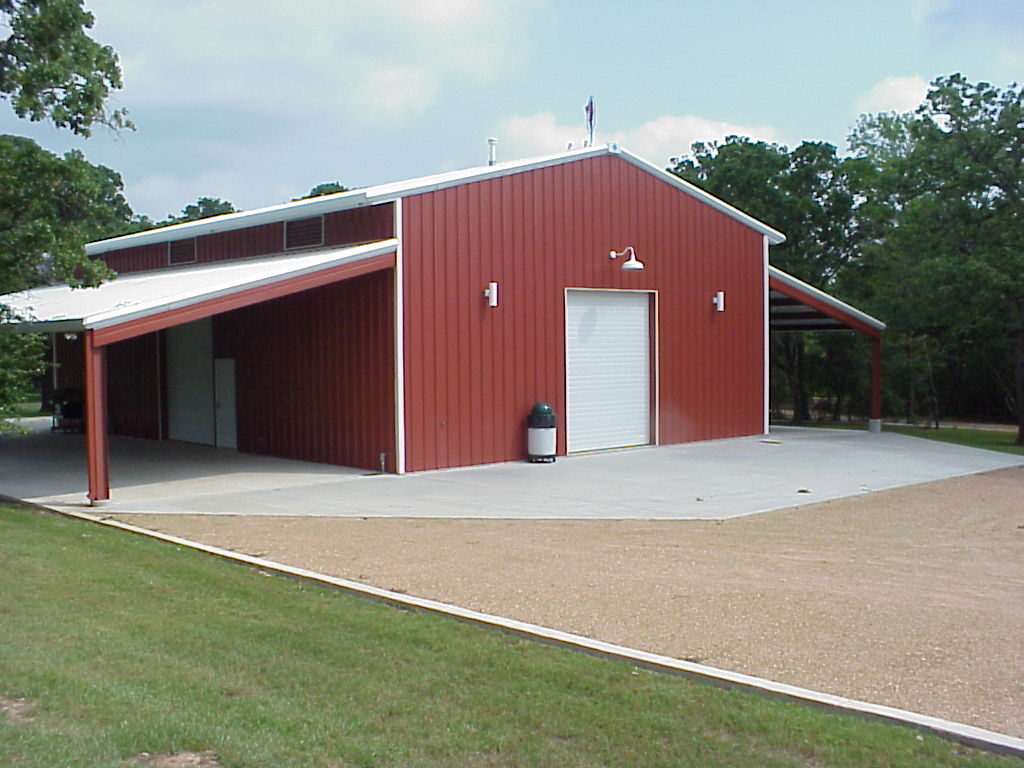

A party barn in College Station: a 40′ × 60′ main building with an 18′ eave height and a 20′ × 60′ lean-to running the full length of each side.

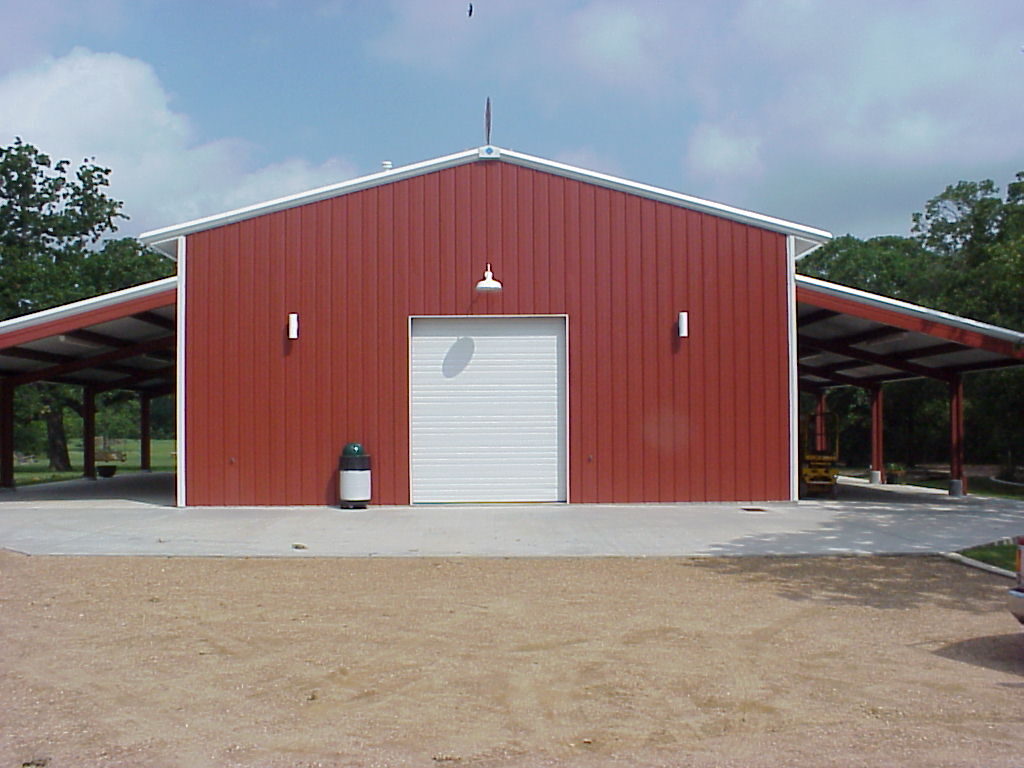

The detail that drives this building is the lean-to drop. Instead of a small step below the main roof, these lean-tos come down a full 3′-6″. That lower, longer roof plane is what puts usable shade on the slab underneath through the middle of the day, which is the whole point of a building people are going to stand around in.
The main roof runs a 3:13 pitch with 2′ overhangs, and the frame is our SR system. The lean-tos were left without soffit on this one.
The building
